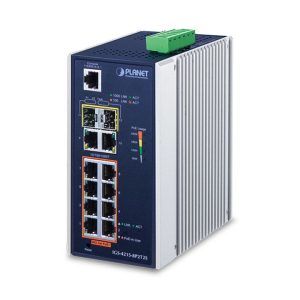

Managed Gigabit Switch PLANET IGS-4215-8P2T2S
- Thương hiệu: PLANET
- Tình trạng: Mới 100%
- Model: IGS-4215-8P2T2S
- Cổng:
– 8 Port 10/100/1000BASE-T RJ45 POE
– 2 Port 10/100/1000BASE-T RJ45
– 2 Port 100/1000X SFP
– 1 Port Console - Switching capacity: 24Gbps
- Công suất POE: 240W
- Bảo hành: 24 tháng
-
Sản phẩm đã bao gồm VAT
-
Giá niêm yết chưa bao gồm phí vận chuyển
- [Chuyên gia giải đáp ] Chơi game bị giật nguyên nhân do đâu ?
- Nhiều người gặp phải tình trạng giật và các hiện tượng lag hình ảnh khác…
- Cách khắc phục lỗi alt tab trên máy tính hiệu quả, nhanh chóng
- Nút Alt-Tab có nhiệm vụ vô cùng hữu ích sử dụng khi điều hướng các…
- Build pc đồ hoạ ngân sách thoải mái, không lo chi phí
- Bạn là một người thiết kế đồ họa, chiếc máy tính của bạn cũng được…
- 4 thông số quan trọng cần biết trước khi mua màn hình máy tính
- Với tốc độ phát triển nhanh chóng của công nghệ, mọi người cũng đang cập…
Giới thiệu sản phẩm
Cost-optimized Full PoE+ Power Solution Ideal for Hardened Environment
Designed to be installed in heavy industrial demanding environments, the IGS-4215-8P2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 30-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-8P2T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
Cybersecurity Network Solution to Minimize Security Risks
The IGS-4215-8P2T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-8P2T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Built-in Unique PoE Functions for Powered Devices Management
As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-8P2T2S features special PoE management functions:
- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
- PoE extension
Intelligent Powered Device Alive Check
The IGS-4215-8P2T2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-8P2T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.
Scheduled Power Recycling
The IGS-4215-8P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Savings
Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-8P2T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
Intelligent LED Indicator for Real-time PoE Usage Monitoring
Via the power usage chart in the web management interface, the IGS-4215-8P2T2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-8P2T2S helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-4215-8P2T2S has four amber LEDs indicating four different PoE power usages, namely 60W, 120W, 180W and 240W.
802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the IGS-4215-8P2T2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-8P2T2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Environmentally Hardened Design
With the IP30 aluminum industrial case, the IGS-4215-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-8P2T2S can be placed in almost any difficult environment.
Robust Protection
The IGS-4215-8P2T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the IGS-4215-8P2T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.
Robust Layer 2 Features
The IGS-4215-8P2T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-8P2T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The IGS-4215-8P2T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Powerful Security
PLANET IGS-4215-8P2T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Friendly and Secure Management
For efficient management, the IGS-4215-8P2T2S is equipped with Command line, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the IGS-4215-8P2T2S offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port.
- By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
Moreover, the IGS-4215-8P2T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.
Flexibility Long-distance Extension Solution
The IGS-4215-8P2T2S provides 2 extra Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through the two dual-speed fiber SFP slots, it can also connect with the 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The IGS-4215-8P2T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Thông số kỹ thuật
Hardware Specifications | |
Copper Ports | Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Port-1 to Port-10) |
SFP Ports | Two 1000BASE-SX/LX/BX SFP interfaces (Port-11 and Port-12) |
Compatible with 100BASE-FX SFP | |
PoE Injector Port | Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8) |
Console | 1 x RS232-to-RJ45 serial port (115200,8, N, 1) |
Reset Button | < 5 sec: System reboot |
> 5 sec: Factory default | |

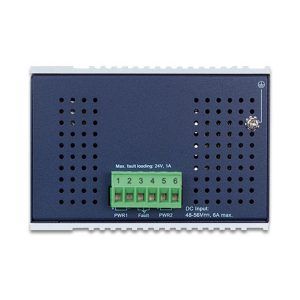

Connector | Removable 6-pin terminal block |
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | |
Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
Power Requirements | 48~56V DC, 6A (max.) (>51V DC for PoE+ output recommended) |
Power Consumption/ Dissipation | 7.8 watts, 26BTU (Standby without PoE function) at DC 56V power input |
14 watts, 47BTU (Full loading without PoE function) at DC 56V power input | |
254 watts, 866BTU (Full loading with PoE function) at DC 56V power input | |
Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
Weight | 1040g |
Enclosure | IP30 aluminum case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | 6KV DC |
LED | 3 x LED for System and Power: |
Green: DC Power 1 | |
Green: DC Power 2 | |
Red: Power Fault | |
2 x LED for PoE Copper Port (Port-1~Port-8): | |
Green: LNK/ACT (10/100/1000Mbps) | |
Amber: PoE-In-Use | |
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): | |
Green: 1000 LNK/ACT | |
Amber: 10/100 LNK/ACT | |
2 x LED for per mini-GBIC interface (Port-11 and Port-12): | |
Green: 1000 LNK/ACT | |
Amber: 100 LNK/ACT | |
4 x LED for PoE Power Usage (W) (Low to high): | |
Amber: 60W, 120W, 180W and 240W | |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 24Gbps/non-blocking |
Switch Throughput@64 bytes | 17.85Mpps @64 bytes |
MAC Address Table | 8K entries |
Shared Data Buffer | 4.1 megabits |
Flow Control | IEEE 802.3x pause frame for full-duplex |
Back pressure for half-duplex | |
Jumbo Frame | 10 Kbytes |
Power over Ethernet | |
PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Output | IEEE 802.3af Standard |
Per port 48V~51V DC (depending on the power supply), max. 15.4 watts | |
IEEE 802.3at Standard | |
Per port 51V~56V DC (depending on the power supply), max. 36 watts | |
PoE Power Budget | Dual power input: maximum 240W (depending on power input) |
Max. Number of Class 2 PDs | 8 |
Max. Number of Class 3 PDs | 8 |
Max. Number of Class 4 PDs | 8 |
PoE Management Functions | |
PoE Management | PD Alive Check |
Scheduled Power Recycling | |
PoE Schedule | |
PoE Usage Monitoring | |
PoE Extension | |
Active PoE Device Live Detection | Yes |
PoE Power Recycle | Yes, daily or predefined schedule |
PoE Schedule | 4 schedule profiles |
PoE Extend Mode | Yes, max. up to 250 meters |
Layer 2 Functions | |
Port Mirroring | TX/RX/Both |
Many-to-1 monitor | |
VLAN | 802.1Q tagged VLAN |
Up to 256 VLAN groups, out of 4094 VLAN IDs | |
802.1ad Q-in-Q tunneling (VLAN stacking) | |
Voice VLAN | |
Protocol VLAN | |
Private VLAN (Protected port) | |
GVRP | |
Management VLAN | |
Link Aggregation | IEEE 802.3ad LACP and static trunk |
Supports 8 groups with 4 ports per trunk | |
Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | |
STP BPDU Guard, BPDU Filtering and BPDU Forwarding | |
IGMP Snooping | IPv4 IGMP snooping v2, v3 |
IGMP querier | |
Up to 256 multicast groups | |
MLD Snooping | IPv6 MLD snooping v2, v3, up to 256 multicast groups |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
IPv4/IPv6 IP-based ACE/MAC-based ACE | |
QoS | 8 mapping IDs to 8 level priority queues |
Port number | |
802.1p priority | |
DSCP/IP precedence of IPv4/IPv6 packets | |
Traffic classification based, strict priority and WRR | |
Ingress/Egress Rate Limit per port bandwidth control | |
Ring | Supports ERPS, and complies with ITU-T G.8032 |
Security Functions | |
Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
Port Security | IEEE 802.1X – Port-based authentication |
Built-in RADIUS client to co-operate with RADIUS server | |
RADIUS/TACACS+ user access authentication | |
MAC Security | IP-MAC port binding |
MAC filter | |
Static MAC address | |
Enhanced Security | DHCP Snooping and DHCP Option82 |
STP BPDU guard, BPDU filtering and BPDU forwarding | |
DoS attack prevention | |
ARP inspection | |
IP source guard | |
Management Functions | |
Basic Management Interfaces | RS232 to RJ45 Console |
Web browser | |
Telnet | |
SNMP v1, v2c | |
Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
System Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network |
Remote/Local Syslog | |
System log | |
LLDP protocol | |
SNTP | |
PLANET Smart Discovery Utility | |
PLANET NMS System/CloudViewer | |
SNMP MIBs | RFC 1213 MIB-II |
RFC 1215 Generic Traps | |
RFC 1493 Bridge MIB | |
RFC 2674 Bridge MIB Extensions | |
RFC 2737 Entity MIB (Version 2) | |
RFC 2819 RMON (1, 2, 3, 9) | |
RFC 2863 Interface Group MIB | |
RFC 3635 Ethernet-like MIB | |
RFC 3621 Power Ethernet MIB | |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (free fall) |
IEC 60068-2-27 (shock) | |
IEC 60068-2-6 (vibration) | |
Standards Compliance | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX | |
IEEE 802.3z Gigabit SX/LX | |
IEEE 802.3ab Gigabit 1000BASE-T | |
IEEE 802.3x Flow Control and Back Pressure | |
IEEE 802.3ad Port Trunk with LACP | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1s Multiple Spanning Tree Protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN Tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
IEEE 802.3az for Energy-Efficient Ethernet | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP v1 | |
RFC 2236 IGMP v2 | |
RFC 3376 IGMP v3 | |
RFC 2710 MLD v1 | |
RFC 3810 MLD v2 | |
ITU G.8032 ERPS Ring | |
Environment | |
Operating Temperature | -40 ~ 75 degrees C |
Storage Temperature | -40 ~ 85 degrees C |
Humidity | 5 ~ 95% (non-condensing) |
